ST Connectors
Plugs
Elbow Connector
Elbow Block
Banjo Bolt Assy. θ 4
Banjo Bolt Assy. θ 6
D/E Connector
Junction Header
Clamps

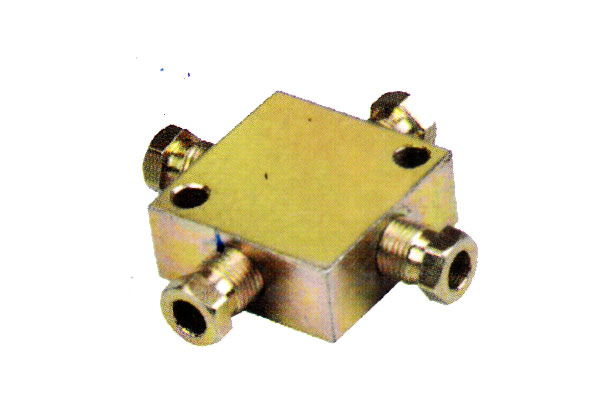

Cross

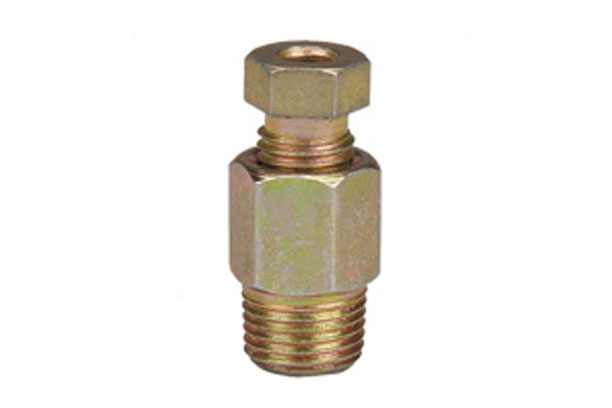

ST Connectors
| Model | Tube Outer Dia (mm) |
Thread |
|---|---|---|
| ST 4 (M6) | 4 | M6X1 |
| ST 4 (M6) | 4 | M6X1 |
| ST 4 (1/8) | 4 | 1/8" BSP |
| ST 4 (M6) | 6 | M6X1 |
| ST 6 (1/8) | 6 | 1/8" BSP |
| ST 6 (1/10) | 6 | M10X1 |
Clamps
| Model | Tube Outer Dia (mm) |
|---|---|
| CS4 | 4/1 Nos. |
| CD4 | 4/2 Nos. |
| CT4 | 4/3 Nos. |
| CS6 | 6/1 Nos. |
| CS10 | 10/1 Nos. |
Elbow Connector
| Model | Tube Outer Dia (mm) |
Thread |
|---|---|---|
| EC 4 (M6) | 4 | M6X1 |
| EC 4 (M6) | 4 | M6X1 |
| EC 4 (1/8) | 4 | 1/8" BSP |
| EC 6 (1/8) | 6 | 1/8" BSP |

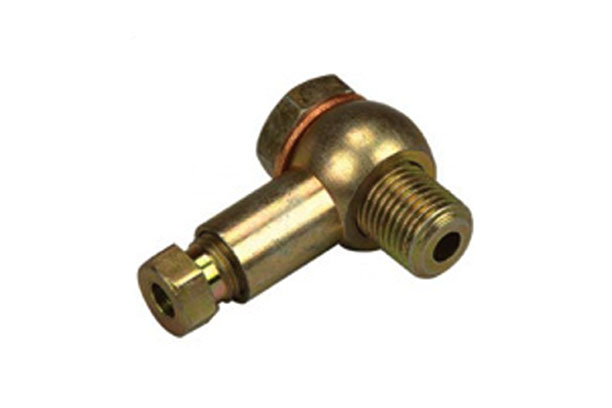

Banjo Bolt Assy. θ 4
| Model | Tube Outer Dia (mm) |
Thread |
|---|---|---|
| BA4 (M6) | 4 | M6X1 |
| BA4 (M8) | 4 | M8X1 |
| BA4 (1/8) | 4 | 1/8" BSP |
| BA4 (M10) | 6 | M10X1 |
Banjo Bolt Assy. θ 6
| Model | Tube Outer Dia (mm) |
Thread |
|---|---|---|
| BA6 (1/8) | 6 | 1/8" BSP |
| BA6 (M10) | 6 | M10X1 |

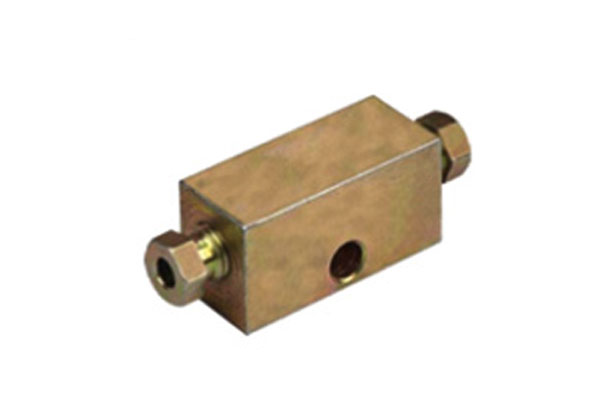

D/E Connector
| Model | Tube Outer Dia (mm) |
|---|---|
| DE4 | 4 |
| DE6 | 6 |

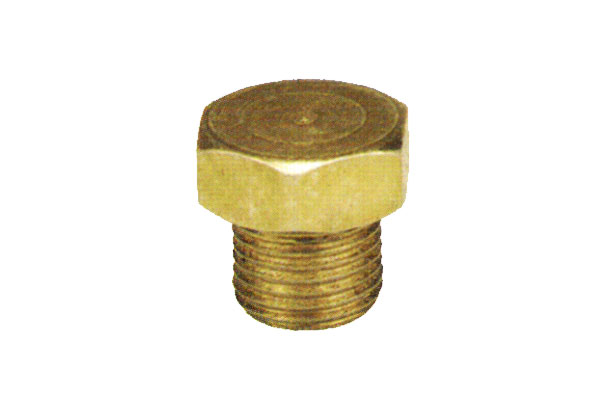

Plugs
| Model | Sealing Washer | Thread |
|---|---|---|
| P8 | Co W8 | M8X1 |
| ST 4 (M6) | C0 W10 | M10X1 |

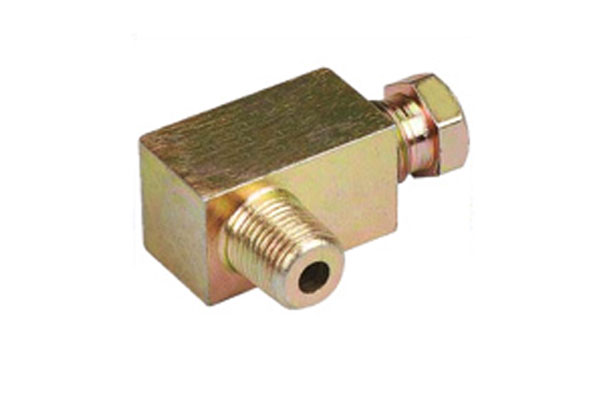

Elbow Block
| Model | Tube Outer Dia (mm) |
|---|---|
| EB 6 | 06 |

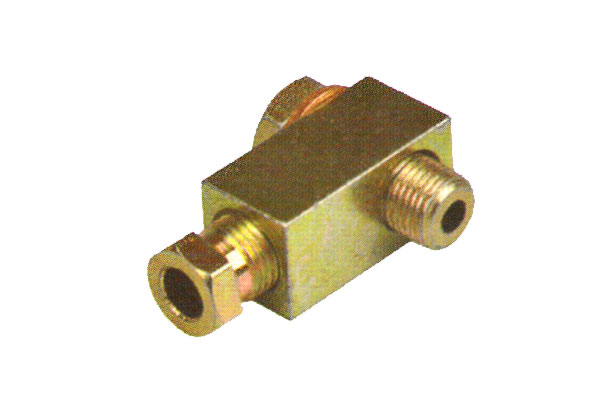

Junction Header
| Model | Tube Outer Dia (mm) |
Thread |
|---|---|---|
| JH3 | 06 | - |
Elbow Block
| Model | Tube Outer Dia (mm) |
|---|---|
| EB 6 | 06 |
Following kinds of tubes are available for single shot lubrication system :
1. Steel Tubes : These are zinc plated MS Seamless tubes with thickness of 0.89mm.
a. Steel Tube 6mm OD : Tube with 6mm OD is used for Main Line from pump to each junction blocks. It has smallest bending radius of 22mm and permissible pressure more than 200 kg/cm sq.
b.Steel Tube 4mm OD : Tube with 4mm OD is used for branch line from metering cartridges to end points. It has smallest bending radius of 8mm and permissible pressure more than 200 kg/ cm sq.
| Sr. No | Model | Description |
|---|---|---|
| 1 | ST6 | Steel Tube 6mm OD |
| 2 | ST4 | Steel Tube 4mm OD |
2. Nylon Tubes : These are semi transparent flexible tubes of material Nylon 6. These tubes are easy to work with. These are necessary for the points, which have motion. For better tube life, it can be protected with springs available with us. Thickness of tube in 1mm.
a. Nylon Tube 6mm OD : This tube has minimum bending radius of 70 mm and maximum permissible operating pressure 45kg/cm sq.
b. Nylon Tube 4mm OD : This tube has minimum bending radius of 50 mm and maximum permissible operating.
| Sr. No | Model | Description |
|---|---|---|
| 1 | NT6 | Nylon Tube 6mm OD |
| 2 | NT4 | Nylon Tube 4mm OD |
3. Hoses : Hoses are used for points where flexibility is a must and also mechanical strength is more such as sharp edges, area with movement of heavy components, chip falling area in machine tools etc. These hoses are made up of synthetic rubber with textile reinforcement.
a. Hoses with 6mm OD steel ends : Hoses are supplied with reusable type end fittings, with 6mm OD round ends of 25mm length. This hose has ID of 6.3 mm and has an operating pressure of 28 kg/cm sq.
b. Hoses with 4mm OD steel ends : Hoses are supplied with reusable type end fittings, with 4mm OD round ends of 22mm length. This hose has ID of 4.8 mm and has an operating pressure of 35 kg/cm sq.
