Motorized Grease Pumps
Lubrite Automatic Single Line Grease Pump consists of Reciprocating Motor Driven Plunger Pump with in built Gear Box.
The Pump incorporate a large grease reservoir with a follower plate & tell tale rod.
Limit Switch is provided on the top of the reservoir to indicate full and empty level of grease.
The pump outlet is connected to Pressure Relief Valve.Bleed Valve is provided on the pump body to bleed air entrapped in the system. Before operating the pump, Bleed Valve is kept open till the continue flow of grease starts from it.
The whole system is controlled with Electric Control Panel.

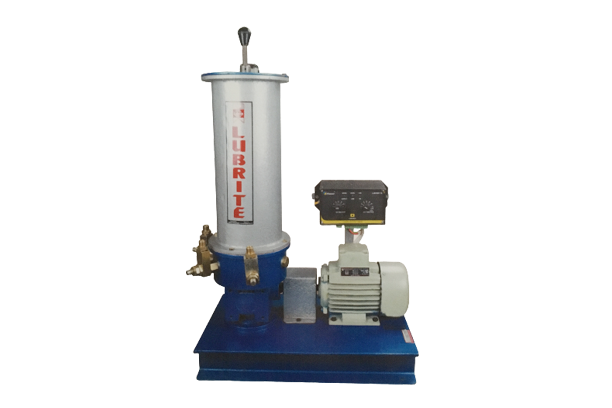

Motorised Grease Pump

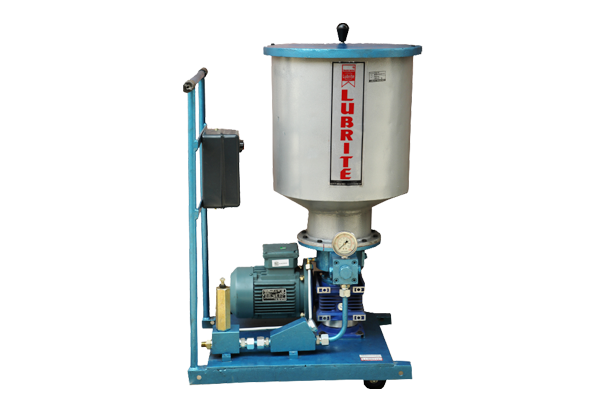

Motorised Grease Pump With Trolly

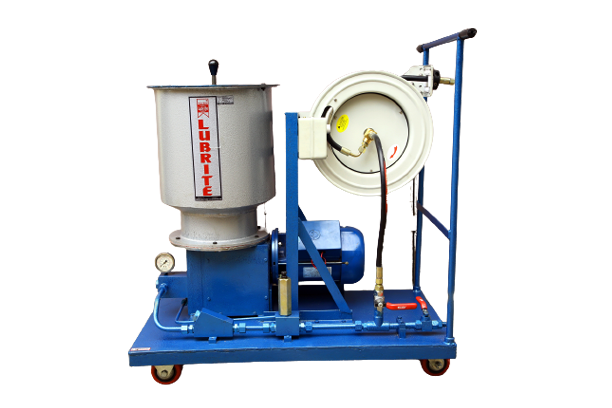

Motorised Grease Pump With Trolly & Hose Reel
Technical Specification
| Specification | AGP-15 | AGP-50 |
|---|---|---|
| Reservoir Capacity | 15 kg | 50 kg |
| Discharge Per Stroke | 35 gm | 125 gm |
| Maximum Pressure | 150 kg/sq.cm. | 300 kg/sq.cm |
| Electric Motor 3 Phase, 415 V AC | 0.5 HP | 1.0 Hp |
| Pressure Relief Value (In Bar) | 150 kg. sq.cm | 300 kg/ sq.cm |
| Pressure Gauges (In Bar) | o to 210 kg/sq.cm. | 0 to 500 kg/sq.cm |
| Working Pressure | 100 kg/sq.cm. | 200 kg/sq.cm. |
| Overall Dimension in MM | 500X300X1300 MM | 700X400X1600 MM |
* Recommended Grease NLGI 00, 0, 1 & 2
