Oil Mist Lubricators
In OIL MIST LUBRICATORS a drop of oil is split by high velocity of airflow 3~5 kg/sq.cm with air regulator. Quantity of oil can be adjusted by the help of adjustment screw by rotating clockwise or anti-clockwise. the oil drop indicator is provided at top to check the speed of oil drop visually . The system is capable of running continously. for automation, solenoid valve & timer can be provided as additional feature. Air pressure as well as oil drop setting is very important for efficient working.
From 01 outlet to 12 outlets models are available as per the requirment.

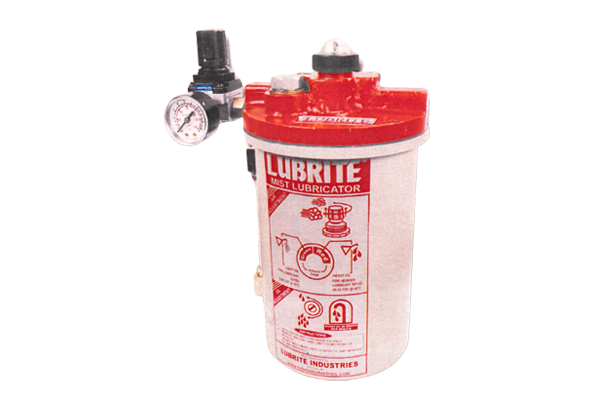

Oil Mist Lubricators
Technical Specification
- Mist Body Reservoir Capacity = 3 Ltrs.
- Air Regulator = 2 kgs
- Solenoid Valve = 220 v AC/24 V AC/DC
- Installation = Vertical
- Mounting Holes = 02 Holes of Dia 8.75mm Drill
- Vertical Center = 100mm
- Air Inlet Port = 1/4" Bsp
Area of Applications
- Knitting Machines (Textiles)
- Chains Lubrications
- Cooling of Toolings
- Spindle Bearing Lubrications
- Lubrication of Gear Trains
- And Many More as Per Customer Specifications
